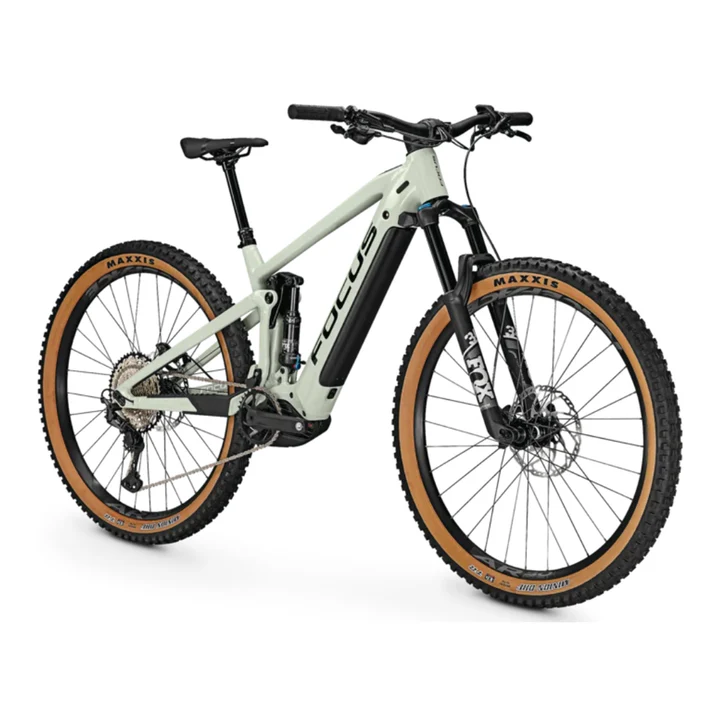

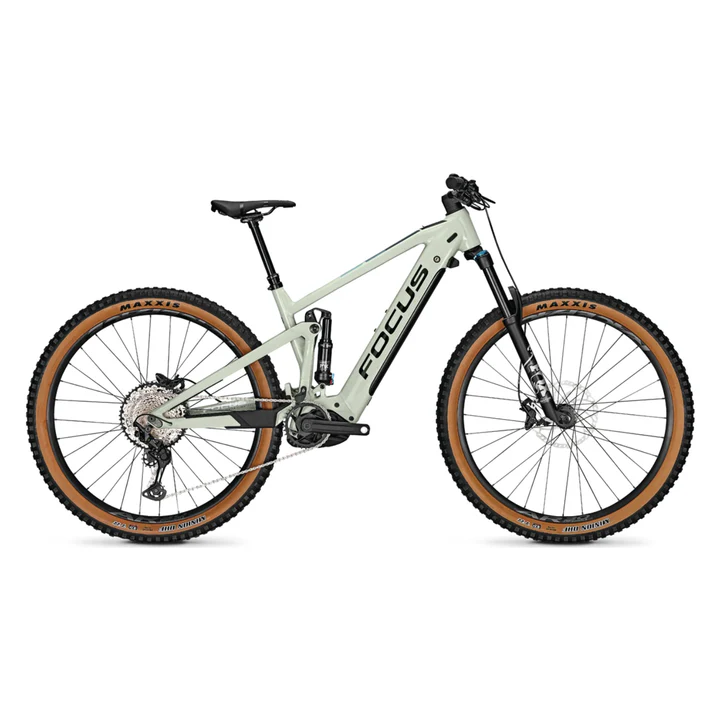

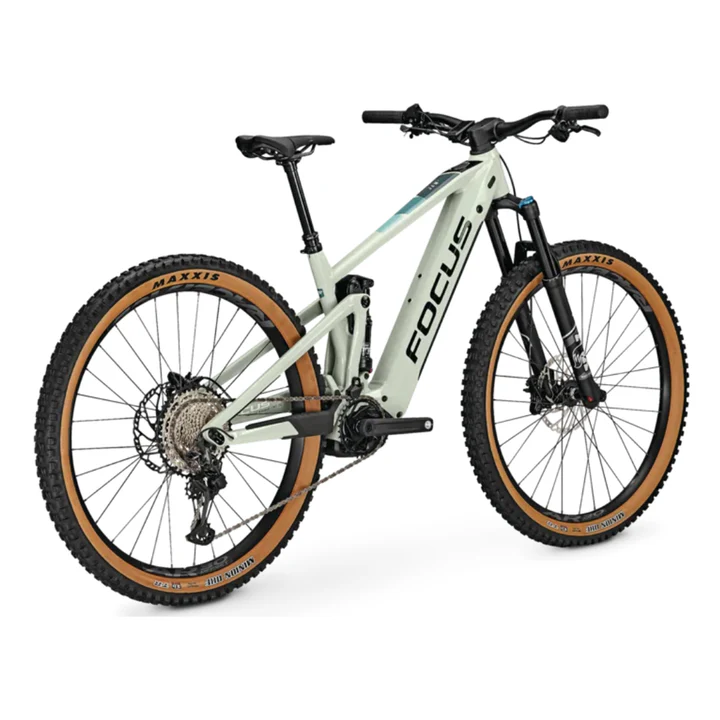

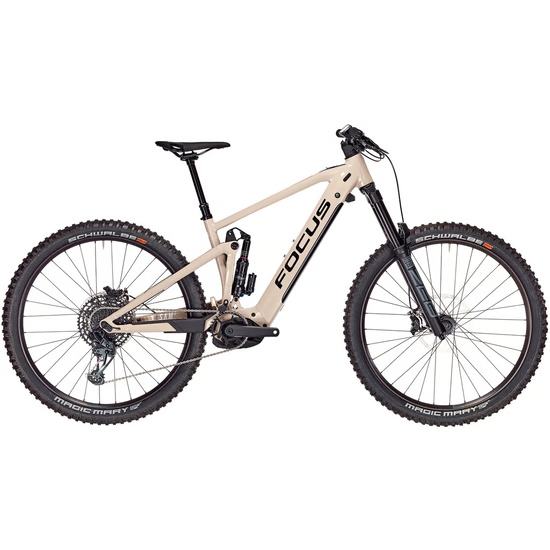

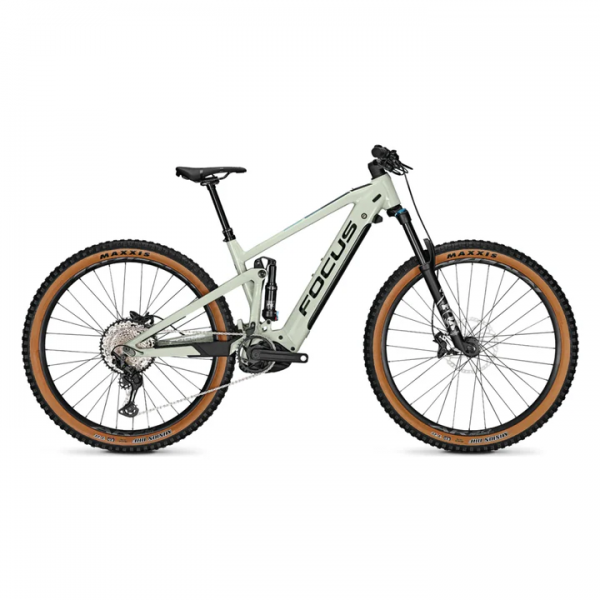

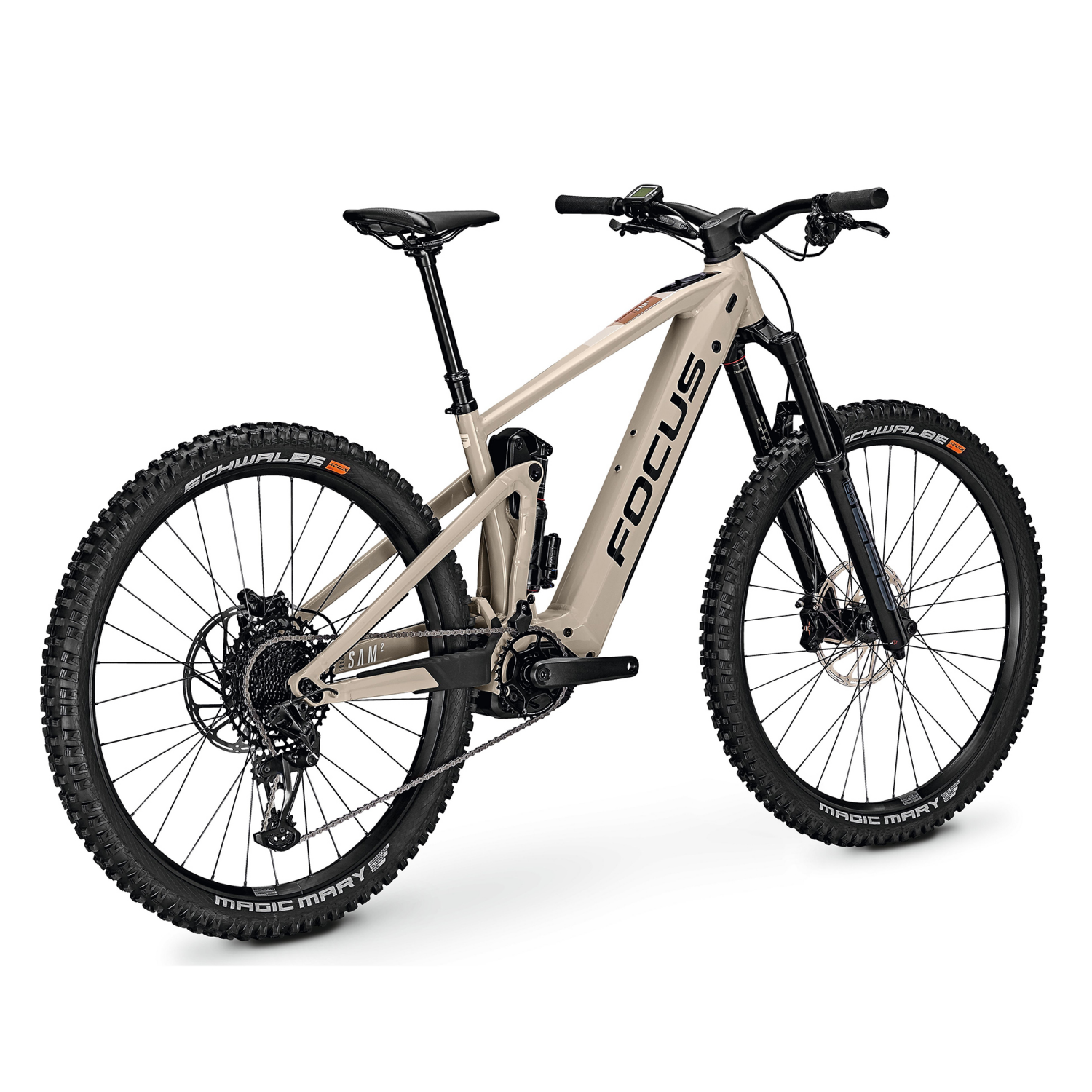

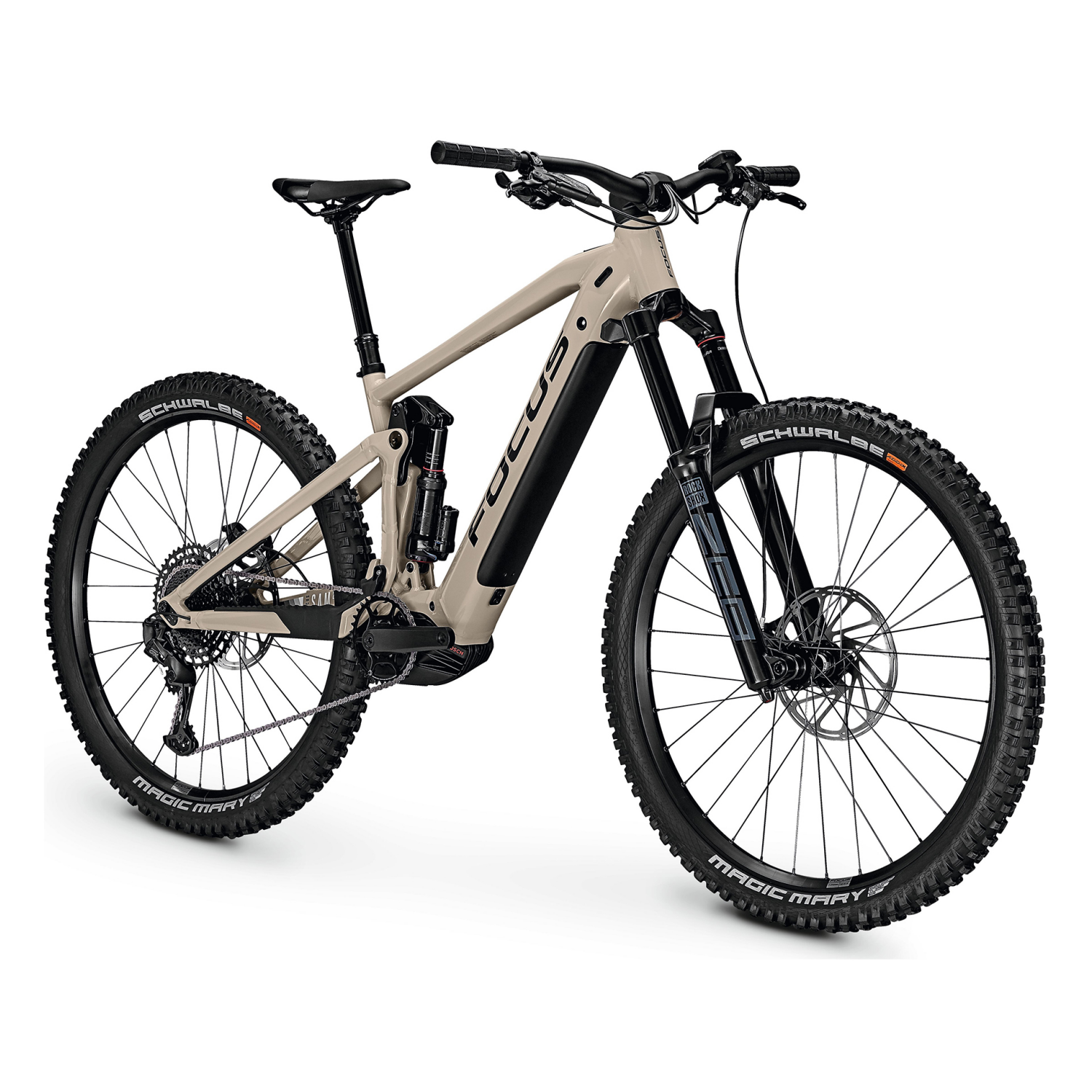

Focus Sam2 6.8 Bicycle Brown. Electric mountain bike with the efficient Bosch Performance CX motor (4th gen.) offers assistance up to 25 km/h with a powerful 85 Nm. Bosch’s most powerful motor is perfectly integrated with the SAM² offering agility and handling. In eMTB mode. the motor assistance automatically adjusts to the pedaling power. The FOLD frame has been specially designed to meet the highest demands of e-MTBs. Featuring downhill-oriented geometry. a 170mm travel fork and fast 29” wheels make the FOCUS SAM² ready for the toughest trails. In addition. the fully integrated CIS wiring ensures a clean cockpit. and thanks to the FOCUS Flip Chip you have the option of mounting 27.5” wheels and very short chainstays (430mm).
DATA SHEET
Frame |
7005 hydroformed aluminium. 3D forging. 170 mm F.O.L.D. kinematic. 148×12 mm thru axle. internal cable routing. post mount 203 mm |
Fork |
Rock Shox ZEB 29 Boost. Charger R. DebonAir. 110×15 mm. 44 mm rake. 170 mm travel |
Shocks |
Rock Shox Super Deluxe Select+. 230/65 mm. hardware: 25.0 x 8 mm |
Shifter |
SRAM GX Eagle. 12-speed |
Levers |
SRAM Code R |
Front brake |
SRAM Code R Disc |
Rear brake |
SRAM Code R Disc |
Cranks |
Samox EC40 ISIS |
Cassette |
SRAM PG-1230 Eagle. 12-speed |
Chain Lock |
SRAM NX Eagle |
Handlebars |
FOCUS Trail. aluminium. riserbar. 780mm. rise: 30mm. backsweep: 9° |
Stem |
FOCUS C.I.S. integrated. 50 mm. 0°. 35 mm. aluminium |
Grips |
FOCUS Locker SL |
Rims |
RODI TRYP30. 30-622 |
Tyres |
Schwalbe Magic Mary 2.6 Super Trail Soft (65 mm) |
Saddle |
FOCUS Trail SL |
Seat post |
Post Moderne dropper post PM-171. 31.6 mm |
Seat clamp |
ACROS ZS56/ZS56. FOCUS C.I.S. Integrated |
Pedals |
MTB. Integrated in Drive Unit |
Weight |
25.80 kg |
Type |
Electrics |
Reference |
FC-SAM2 6.8-21 MARRON |
Identifier |
57216 |
| Color | Brown, Light green |
|---|---|
| Size | L, M, S, XL |
