Free & Fast Shipping

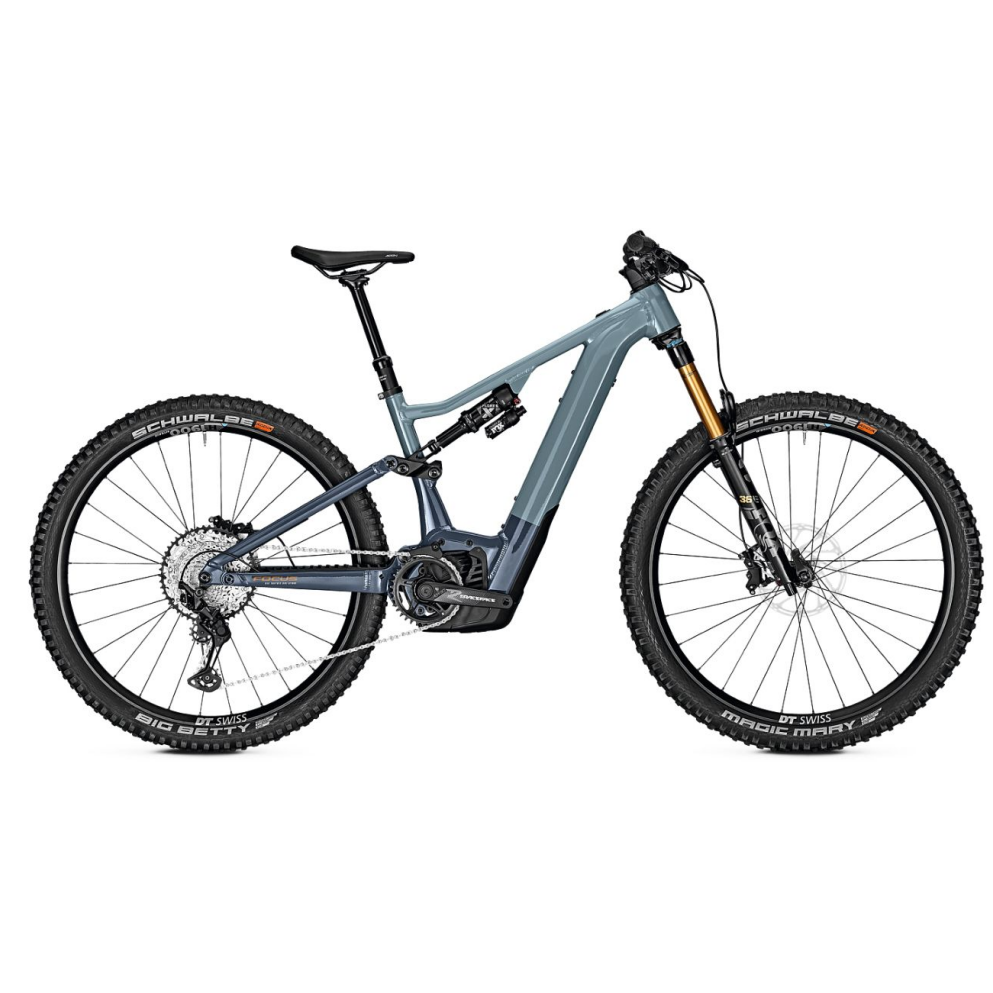

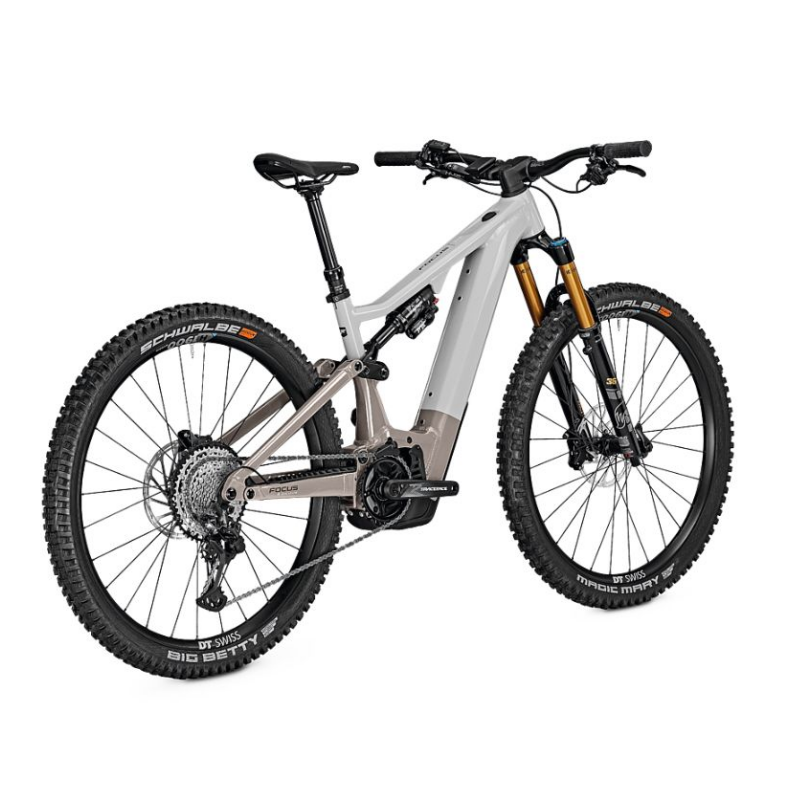

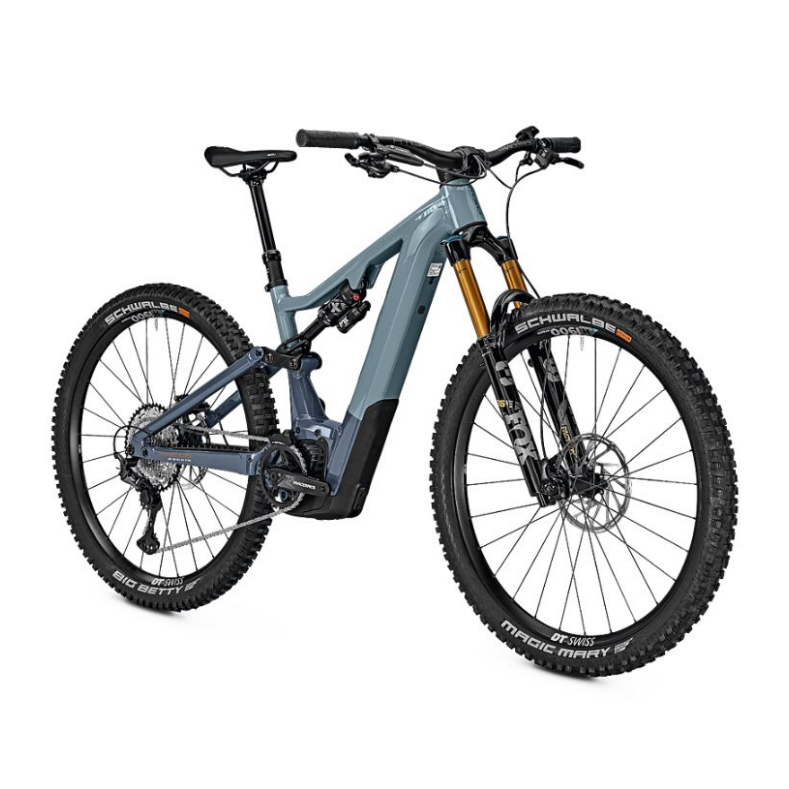

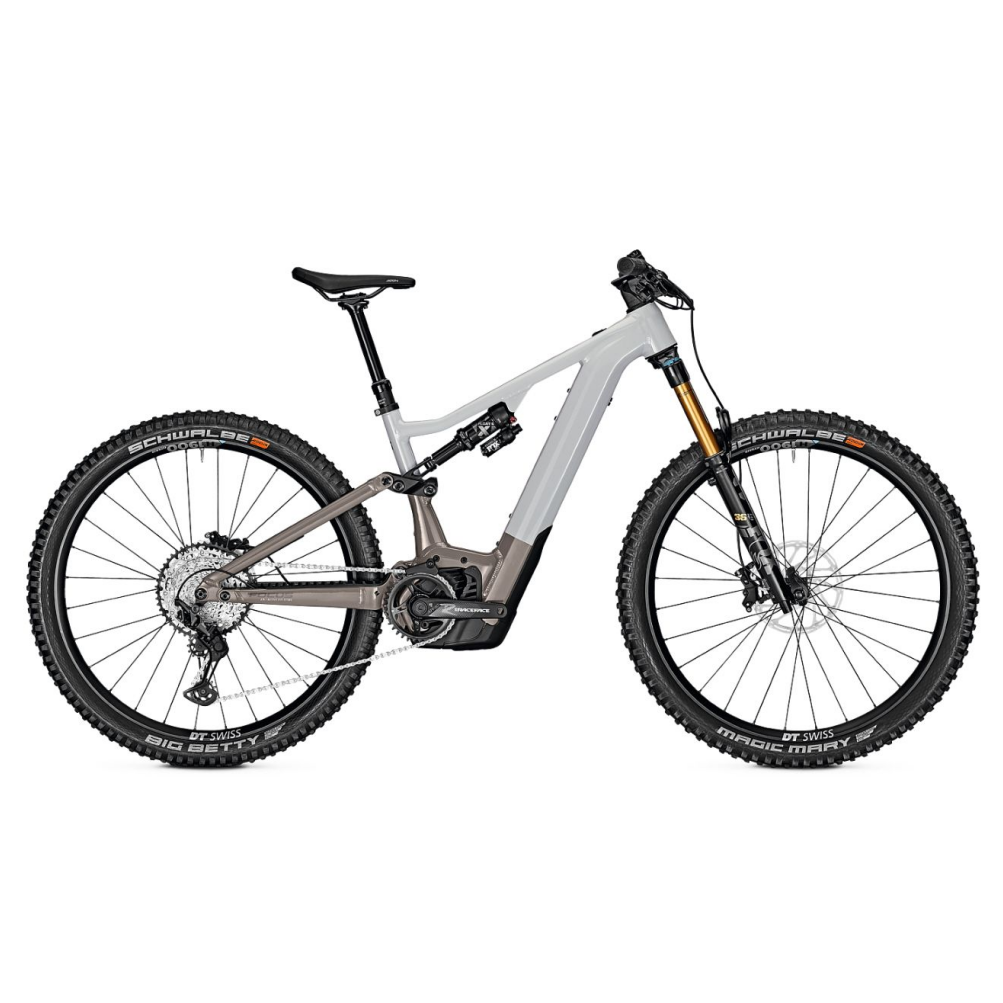

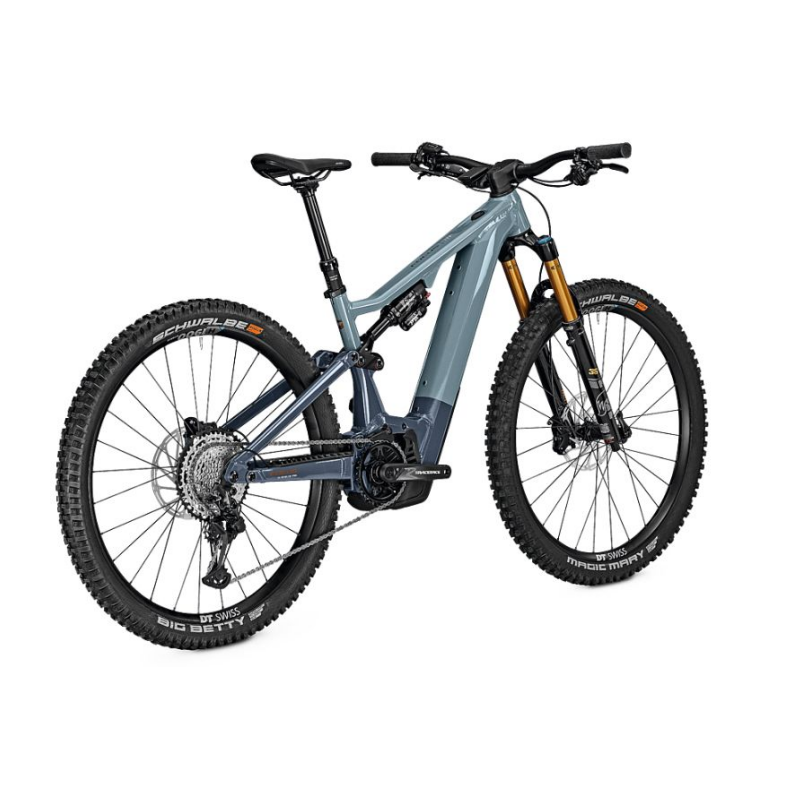

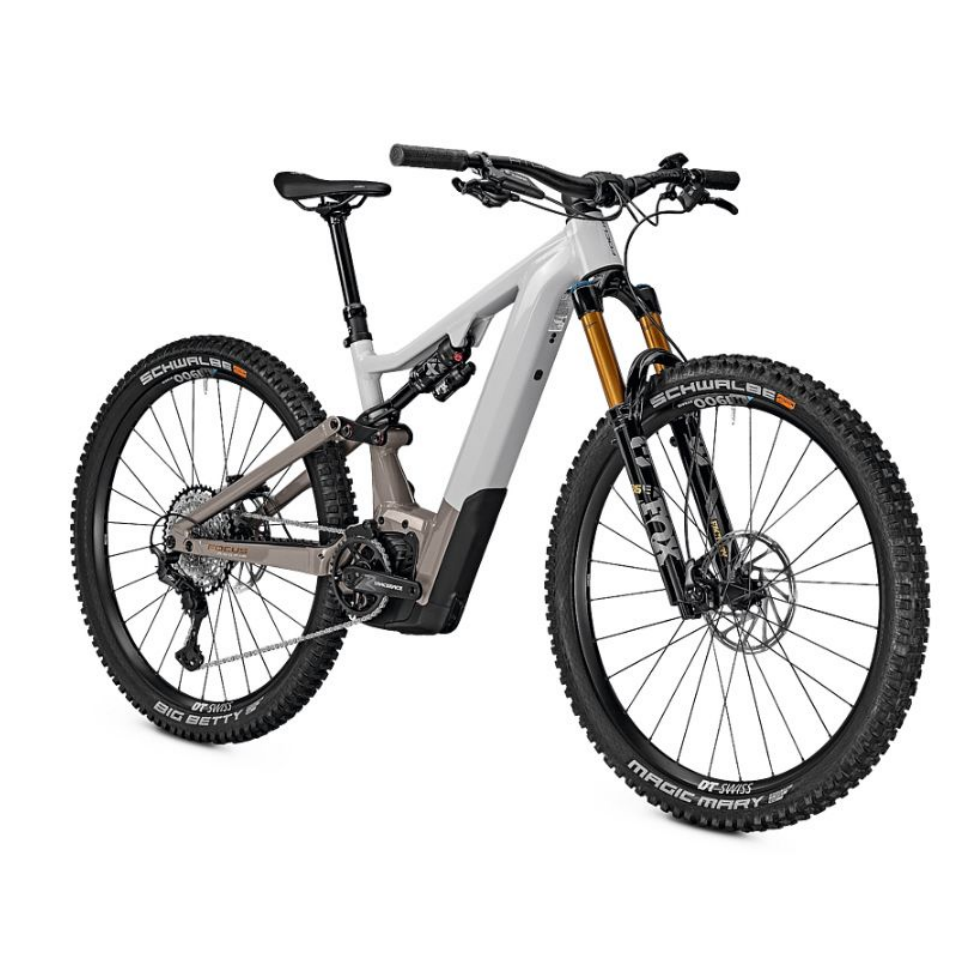

Bosch Smart System with Performance CX electric drive. Kiox 300 display and 750 Wh battery.
160 mm travel FOX 36 Factory suspension fork and 150 mm FOLD kinematics with FOX X Performance damper
High precision and super reliable: Shimano XT 1×12 gears and 4-piston brakes as well as fully integrated CIS cable routing and DT Swiss H1900 wheels
Bosch CX electric drive & 750 Wh battery
160mm FOX 36 Factory fork & 150mm FOX X Performance shock
Shimano XT 1×12 and DT Swiss H1900 wheels
SUPER POWERFUL AND DYNAMIC E-SUPPORT
The efficient Bosch Performance CX electric drive (Gen.4) supports you with a powerful 85 Nm up to 25 km/h. The most powerful electric motor from Bosch is perfectly integrated. the JAM² is agile and maneuverable. In eMTB mode. the motor optimally adjusts the support according to your performance. The Bosch Powertube battery is perfectly integrated into the down tube. The battery can be removed at any time for charging. but the charger can also be plugged directly into the bike. Thanks to the 750 Wh battery capacity. you can ride all your trails over and over again.
OPTIMAL SUSPENSION PERFORMANCE FOR EVERY SITUATION
Our FOLD chassis is specially tailored to the increased requirements of an E-MTB. This is how we guarantee the perfect mix on the E-All-Mountain JAM²: FOLD responds extremely sensitively. but still offers enough progressiveness so that the damper does not bottom out.
This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| Frame | 7005 hydroformed aluminum. 3D forging. 150 mm FOLD kinematics. 148×12 mm thru axle. internal cable routing. post mount 203 mm |
| Frame shape | Mountain bike |
| material | aluminum |
| Gender | Unisex |
| Weight | approx. 25.0 kg |
| maximum weight allowed | 150kg |
| Fork | FOX 36 Float Factory 29. Grip 2. 110 x 15 mm. 44 mm rake |
| mute | FOX Float X Performance. 210/55 mm. hardware: 25.0 x 8.0. no bushing |
| Manufacturer switching group | Shimano |
| Rear derailleur | Shimano Deore XT M8100. 12-speed |
| Number of gears | 1×12 |
| Circuit type | Derailleur gears |
| crank | RaceFace Aeffect R e-Optimized Bosch G4 |
| cassette | Shimano SLX M7100. 12-speed |
| Drive type | Chain drive |
| Freewheel/resignation | Freewheel |
| Pedals included | no |
| Wheels | DT SWISS H1900. 30-622. 15×110 mm / 12×148 mm |
| Wheel size | 29 inches |
| tires | Schwalbe Magic Mary. 2.6 Super Trail Soft. 65-622. Schwalbe Big Betty. 2.6 Super Trail Soft. 65-622 |
| Manufacturer engine | Bosch |
| engine | Bosch Performance CX |
| Max. Torque | 85 Nm |
| Range | up to 150 km |
| Support | up to 25 km/h |
| battery pack | Bosch 750Wh PowerTube |
| display | Bosch Kiox 300 |
| Brakes | SRAM DB8. 4-piston. hydraulic disc brake |
| Handlebars | RaceFace Atlas 35. aluminum. 820 mm. rise: 35 mm. backsweep: 8° |
| Seat post | Post Modern dropper post PM-214. 34.9 mm |
| saddle | Fizik Terra Aidon |
| Stem | FOCUS CIS integrated. 50 mm. 0°. 35 mm. aluminum |
| Accessories/Other | Charger included |
| Color | BLUE, White |
|---|---|
| Frame size | L, M, S, XL |
